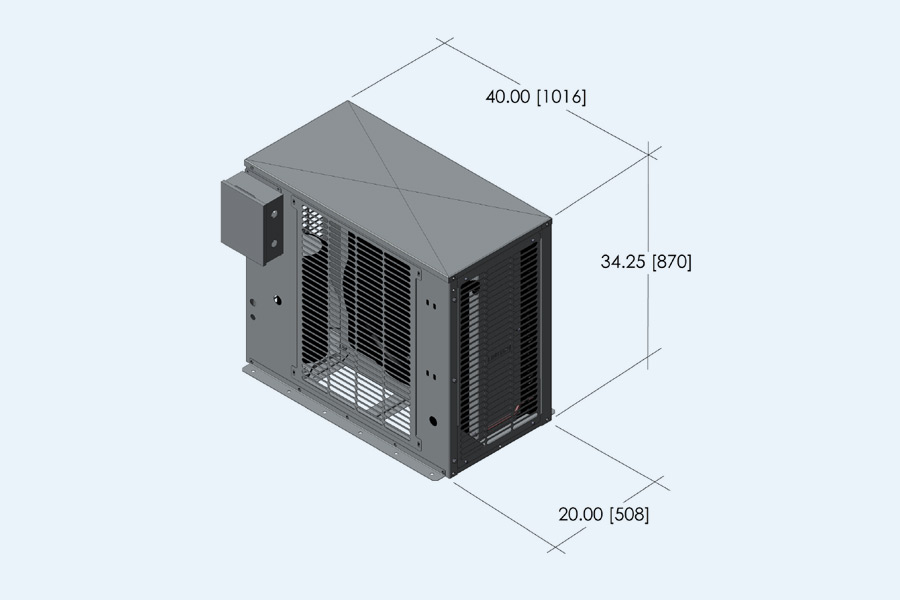

LHDC 36 Condenser

LHDC 36 Condenser

A One-of-a-Kind System for Your Unique Application Challenges

Multiple industries around the world are subjected to high temperatures, dirt, and corrosive elements. In these applications, when you don’t need all of the severe aspects of the Lintern equipment, this is a great fit. To solve this, Lintern Corporation developed the LHDC 36 condenser. Featuring a broad cooling capacity and maintenance-free operation as well as various safety controls, the LHDC 36 condenser is the ideal solution for protecting workers and your equipment.

Explore the specifications and flexible mounting options for our LHDC 36 condenser unit below. If you’d like to learn more about the features and applications of this unit and discuss its available options, please contact our sales team today.

CAPACITY

20,000-65,000 BTUH (5.8-19 KW)

OPERATING RANGE

70°F-140°F (21°C-60°C)

FRAME CONSTRUCTION

Heavy gauge 304 stainless steel frame

CONDENSER COIL

Aluminum fin, copper tube 8 fins per inch (3.2mm)
Heavy gauge .0095” (.241mm) hardened fin stock
Flexible epoxy coated

REFRIGERANT

R-134A
R-450A

COMPRESSOR

Copeland hermetic scroll

FAN MOTOR

24” (610mm) motorized axial fan
3000CFM @ 50Hz 5100 M3H
3600CFM @ 60Hz 6120 M3H

VOLTAGE

208-230/460/575/3/60 Hz VAC
380-415/3/50 Hz VAC
Single phase available on limited models up to 3 tons
240 VDC with VFD package

CONTROLS

High pressure switch
Low pressure switch
Receiver tank for system pump down
Pressure relief valve
Optional low ambient controls

WEIGHT

300 lb/141 kg

MOUNTING

Floor mounting

Under development. Check back soon.
