3000 Series

3000 Series

A Versatile Design That Solves Your Application Challenges

Similar to our 2000 condenser series, the 3000 series of air conditioning condensers provides a modular design that enables us to add coils and tailor the compressor to meet your specific cooling needs. The 3000 series delivers reliable cooling performance for crane cabs, control rooms, and numerous other enclosures in multiple applications and industries around the world. If your environment is extremely hot, dirty, or subject to corrosive elements, trust the 3000 series from Lintern Corporation to protect your people and your equipment.

Explore the specifications and flexible mounting options for our 3000 series condenser unit below. If you’d like to learn more about the features and applications of this unit and discuss its available options, please contact our sales team today.

CAPACITY

18,000-48,000 BTUH (5.3-14.1 KW)

OPERATING RANGE

70°F-160°F (21°C-71°C)

FRAME CONSTRUCTION

Heavy gauge, epoxy-coated mild steel
Optional 316 stainless steel

CONDENSER COIL

Aluminum fin, copper tube 8 fins per inch (3.2mm)
Heavy gauge .0095” (.241mm) hardened fin stock
Flexible epoxy coated

REFRIGERANT

R-134a
R-513A

COMPRESSOR

Copeland hermetic scroll or Bitzer semi-hermetic with 2- or 4-cylinder depending on capacity required

FAN MOTOR

18” (457mm) diameter axial fan with epoxy-coated aluminum blades
2335CFM @ 50Hz 3970 M3H
2800CFM @ 60Hz 4760 M3H

VOLTAGE

208-230/460/575/3/60 Hz VAC
380-415/500/3/50 Hz VAC
240 VDC with VFD

CONTROLS

Dual pressure switch
Crankcase heater
Optional low ambient controls
Low pressure switch for unloading
Receiver tank for system pump down
Pressure relief valve

WEIGHT

400 lb/182 kg for the 336
800 lb/364 kg for the 348

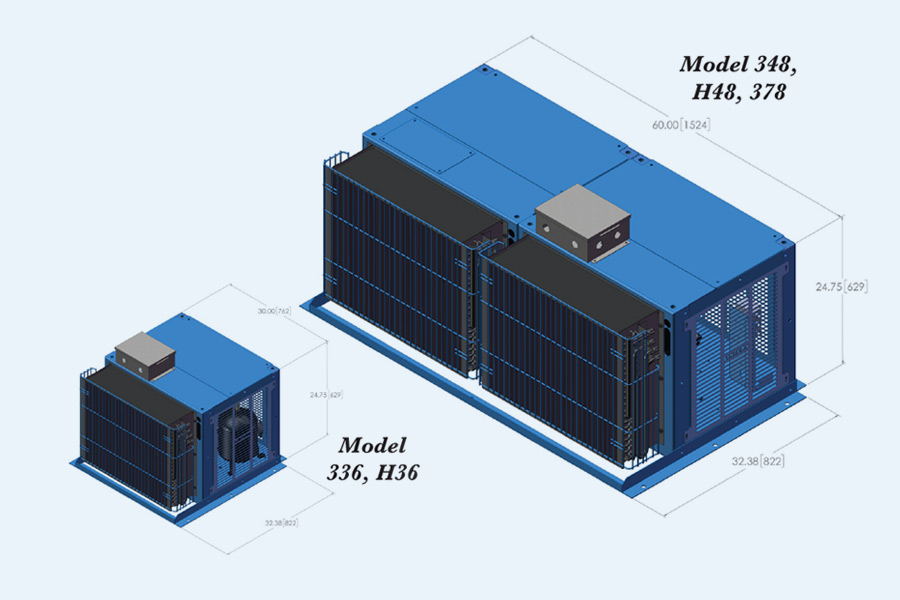

MOUNTING

336 and H36 can be stacked vertically floor mounted
348/H48 and 378 are side horizontal floor mount only
